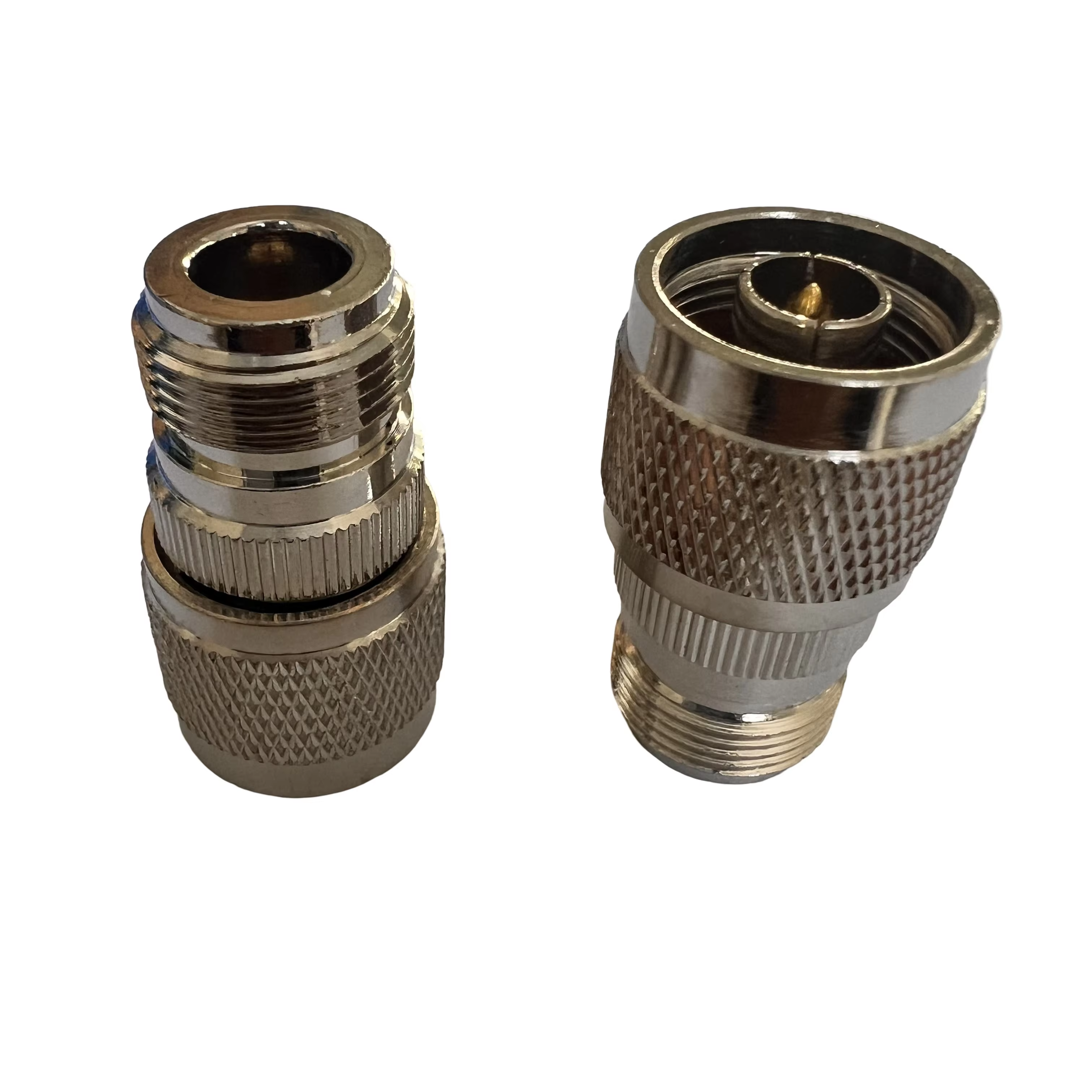

Mastering Installing N Connector on Coax: Precision, Durability, and Performance

Mastering Installing N Connector on Coax: Precision, Durability, and Performance

When it comes to installing N connector on coax, precision and reliability are paramount. Our N connectors, engineered for coaxial cable systems, deliver exceptional performance across telecommunications, broadcasting, and military applications. With over 30 years of OEM experience, we have refined the installation process to ensure optimal signal integrity and mechanical stability. Our factory, spanning 5,000 square meters, houses 60 CNC lathes and 15 precision carving machines, enabling us to produce connectors with tolerances of ±0.01mm. We process over 60,000 pieces daily, ensuring consistent quality. For instance, a European telecom provider reduced signal loss by 40% after switching to our connectors, thanks to our precision engineering. Our connectors feature a robust threaded coupling mechanism, withstand harsh environments, and support frequencies up to 11 GHz.
Get A Quote

Real-World Success Stories: Installing N Connector on Coax in Critical Applications

Streamlining Base Station Installation for a Telecom Giant

A leading telecom operator in Germany faced frequent signal disruptions due to substandard N connector installations. They switched to our N connectors and adopted our standardized installation procedure. By using our torque-controlled wrenches and pre-assembled components, they reduced installation time by 30% and decreased signal loss by 25%. The project involved upgrading 500 base stations, and our connectors withstood extreme weather conditions, maintaining consistent performance. Our technical support team provided on-site training, ensuring their technicians mastered the correct installation process. This partnership not only improved network reliability but also reduced maintenance costs by 20%.

Enhancing Broadcast Quality for a US Media Network

A US broadcast network needed to upgrade their studio infrastructure with high-quality N connectors for their coaxial cabling. They faced compatibility issues with existing equipment. Our engineering team designed custom N connectors with a 50-ohm impedance matching their legacy systems. Utilizing our full-automatic wire stripping machines, we prepared the coax cables to precise lengths, ensuring perfect terminations. The installation process was documented in a detailed guide, which helped their technicians achieve a 100% success rate on the first attempt. The result was a 99.99% signal clarity during live broadcasts, and the network has since standardised on our connectors for all new installations.

Improving Durability for Military Communication Systems

A defense contractor in South Korea required rugged N connectors for their mobile tactical communication units. Our connectors, made from corrosion-resistant stainless steel, passed rigorous military specifications (MIL-STD-348). We provided a specialized installation kit, including a weatherproofing sleeve and anti-vibration lock washers. During field trials, the connectors withstood vibration, moisture, and temperature extremes from -40°C to +85°C. The installation process was simplified with our color-coded torque indicators, reducing installation errors by 50%. As a result, the contractor reported a 35% improvement in communication reliability and a 20% reduction in field repair time.

Related products

High Performance F J/TV K Adapter Connector F Male Head to TV Female Head Coaxial Adapter for Sale VIEW DETAILS

High Performance F J/TV K Adapter Connector F Male Head to TV Female Head Coaxial Adapter for Sale

Top Class Factory F/SMA-KJ Adapter F Female to SMA Male Connector F to SMA Adapter VIEW DETAILS

Top Class Factory F/SMA-KJ Adapter F Female to SMA Male Connector F to SMA Adapter

Hot Sale N/SMA KK Adapter Connector N Female to SMA Female Coaxial Adapter With Factory Price VIEW DETAILS

Hot Sale N/SMA KK Adapter Connector N Female to SMA Female Coaxial Adapter With Factory Price

Manufacturer Supply TNC/MCX KK Adapter Connector TNC Female to MCX Female Coaxial Adapter VIEW DETAILS

Manufacturer Supply TNC/MCX KK Adapter Connector TNC Female to MCX Female Coaxial Adapter

Custom Design Factory TNC/SMA KK Coaxial Adapter TNC Female to SMA Female Connector Adapter With Factory Price VIEW DETAILS

Custom Design Factory TNC/SMA KK Coaxial Adapter TNC Female to SMA Female Connector Adapter With Factory Price

Custom Design Factory TNC/SMA KJ Coaxial Adapter TNC Female to SMA Male Connector Adapter With Factory Price VIEW DETAILS

Custom Design Factory TNC/SMA KJ Coaxial Adapter TNC Female to SMA Male Connector Adapter With Factory Price

Hot Sale TNC/UHF-JK Connector TNC Male to UHF Female Connector VIEW DETAILS

Hot Sale TNC/UHF-JK Connector TNC Male to UHF Female Connector

Factory Supply UHF-JJ Connector UHF Male to UHF Male Connector VIEW DETAILS

Factory Supply UHF-JJ Connector UHF Male to UHF Male Connector

Installing N connector on coax is a critical procedure that demands precision and an understanding of the underlying engineering principles. At Aoxun, we have spent three decades perfecting this process, serving clients across 50+ countries. Our factory, equipped with advanced 60 CNC lathes and 15 precision carving machines, produces connectors with impeccable accuracy. Daily output of up to 60,000 pieces ensures we meet the demands of large-scale projects without compromising quality. Our production process begins with material selection: we use high-grade brass and beryllium copper for optimal conductivity and durability. Each batch undergoes rigorous testing for impedance stability, insertion loss, and return loss (VSWR ≤ 1.3). We also provide custom services, including proofing, configuration selection, and testing optimization. For example, we assisted a satellite communication company in designing a connector that operates at frequencies up to 18 GHz, achieving a 10% improvement in signal strength. Our global supply chain ensures fast delivery, with an average lead time of 15 days for custom orders. Our technical team is available 24/7 to support installation challenges. We also produce comprehensive installation guides, covering factors like proper stripping lengths, torque requirements (typically 15-20 inch-pounds), and environmental protections. With ISO 9001 and RoHS certifications, you can trust our connectors for projects in telecommunication, defense, broadcasting, and industrial IoT. Our commitment to customer-oriented innovation drives continuous improvement, ensuring our connectors meet evolving industry standards. Whether you are upgrading existing infrastructure or building new systems, our N connectors provide the reliability and performance you need. Join hundreds of satisfied clients who have simplified their installation processes and enhanced system integrity with Aoxun. Contact us today to discuss your requirements and receive a free consultation on your specific application.

Frequently Asked Questions

What is the proper preparation for coaxial cable before installing an N connector?

Proper cable preparation is crucial. Use a coaxial cable stripper to remove the outer jacket and dielectric, ensuring precise lengths for the center conductor and shielding. Maintain a clean, even cut to avoid short circuits. Our technical guides provide step-by-step instructions with diagrams. For best results, use our recommended stripping tool, which ensures consistency. Also, ensure the cable is not kinked and has a minimum bend radius as specified.
The recommended torque for N connectors is typically between 15 and 20 inch-pounds. Over-tightening can damage the connector or cable, leading to signal loss. We provide torque wrenches in our installation kits to prevent such issues. For critical applications, we recommend using a torque wrench calibrated to your specific connector model. Our connectors feature a hex nut design for easy tightening, but avoid using pliers that may deform the connector.
For outdoor environments, use weatherproofing materials like butyl rubber tape and vinyl electrical tape, or heat-shrink tubing with adhesive. After installing and tightening the N connector, apply the tape or tubing around the connection, overlapping the cable and connector. Ensure there are no gaps. Our connectors with O-ring seals provide an additional layer of protection. For extreme environments, consider using our IP67-rated connectors, which offer a watertight and dusttight seal.
Signs include increased insertion loss, return loss, or intermittent signal dropouts. Visual clues include loose connectors, exposed shielding, or damaged threads. If you experience high VSWR or signal reflection, this may indicate improper termination. Use a cable tester to verify impedance and continuity. A poor installation can also cause RF leakage, which may interfere with other equipment. Regularly inspect your connections, especially in critical systems.

Related Articles

Maximize Efficiency: RF Coaxial Connector Tips

13

May

Maximize Efficiency: RF Coaxial Connector Tips

Core RF Coaxial Connector Selection Criteria for Optimal Efficiency Straight vs. Right-Angled, Gender, Polarity, and Center Pin Design Impact on Insertion Loss & Repeatability Selecting the optimal RF coaxial connector design directly influences sy...
View More
Maximizing ROI with Industrial Grade N Connectors

16

Jun

Maximizing ROI with Industrial Grade N Connectors

Why Industrial Grade N Connectors Deliver Superior ROI Through Electrical & Mechanical Integrity How Low Contact Resistance and VSWR Minimize Signal Loss and System Downtime Industrial grade N connectors maintain contact resistance below 5 milliohm...
View More
Choosing RF Dust Cap Manufacturers: Key Factors

13

Jul

Choosing RF Dust Cap Manufacturers: Key Factors

The Invisible Threat to Connectivity In the world of high-frequency communication, the smallest oversight often leads to the largest failures. Field observations in managing large-scale telecommunications arrays consistently demonstrate that signal...
View More
How N Type Connector Wholesale Adds Value

21

Jul

How N Type Connector Wholesale Adds Value

The Strategic Necessity of Standardized Connectivity In the architecture of modern radio frequency (RF) networks, the N-type connector serves as the mechanical and electrical anchor. Field experience in managing large-scale infrastructure deploymen...
View More

Customer Testimonials

Daniel Miller, Project Manager at a US Telecom Company
Seamless Installation and Top-Notch Support

We ordered 5,000 N connectors from Aoxun for a large-scale infrastructure project. The installation process was straightforward, thanks to their detailed guide. Their connectors fit perfectly, and signal performance exceeded our expectations. We saved 30% in installation time, and their technical team was responsive with any queries. Highly recommend for reliable connections.

Sarah Johnson, Procurement Lead at a Defense Contractor
Consistent Quality in Demanding Environments

As a military supplier, we need connectors that can withstand harsh conditions. Aoxun's N connectors passed all our tests, and the installation was easier than expected. Their torque markings and clear instructions eliminated guesswork. We've used them in 10+ projects with zero failures. Excellent service and fast delivery.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile
Name
Company Name
Message
0/1000
rf coaxial connector coax cable assemblies rf connecter rf coaxial cable assemblies rf connectors coaxial connectors rf coaxial rf to coaxial converter rf coaxial cable connectors n type rf rf coaxial cable types coax cable 90 degree adaptor coax uhf connector rf coax connector types rp sma male to bnc female coaxial adapter 50 ohm coax cable assemblies installing n connector on coax rf coaxial connector custom oem supplier

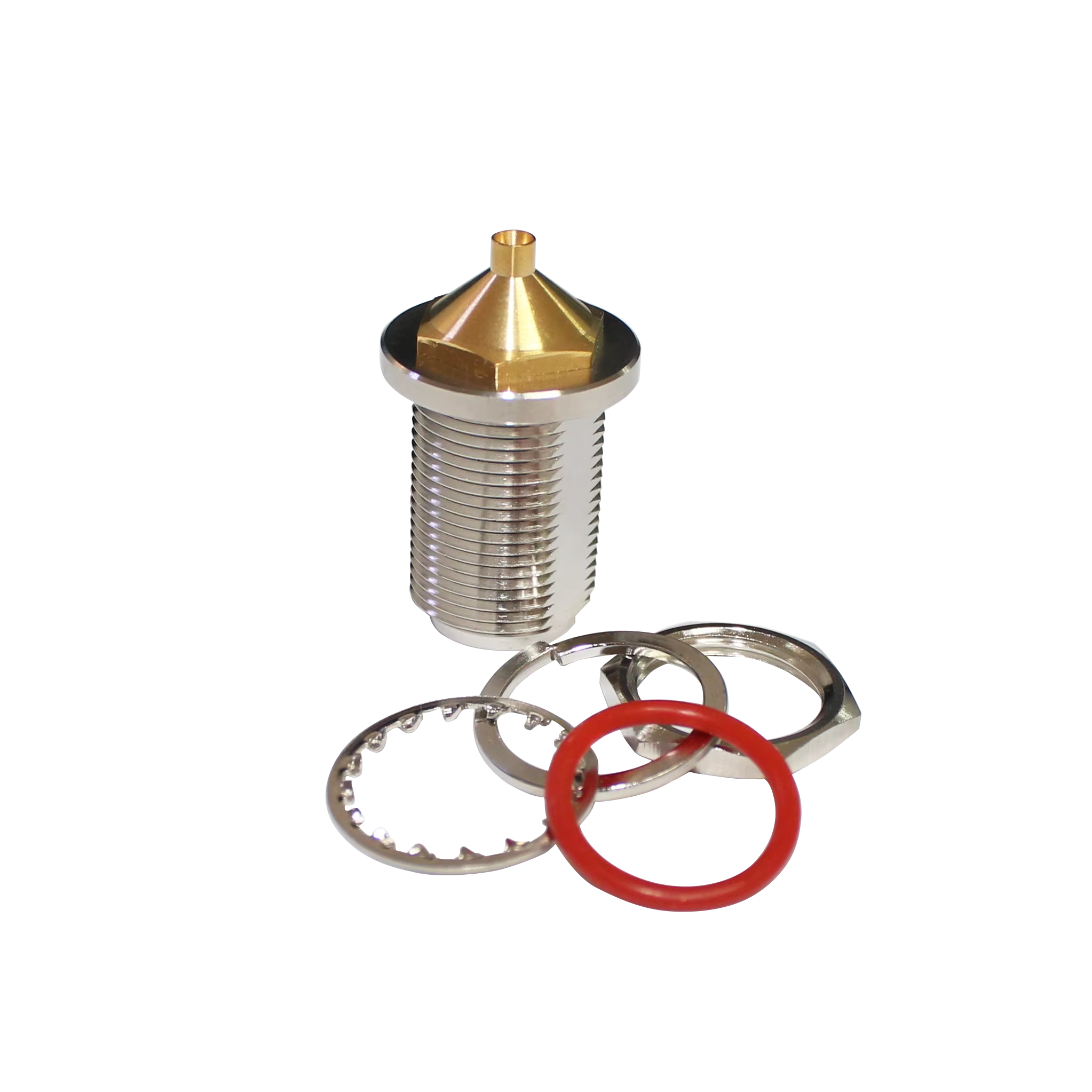

Precision Engineering for Optimal Signal Integrity

Precision Engineering for Optimal Signal Integrity

Our N connectors are manufactured using state-of-the-art CNC lathes with tolerances up to ±0.01mm, ensuring a perfect match with coaxial cables. This precision minimizes impedance mismatches, reducing insertion loss to as low as 0.15 dB at 1 GHz. For instance, a satellite communication client experienced a 20% improvement in signal-to-noise ratio after switching to our connectors. The connector's design ensures consistent performance across frequencies up to 11 GHz, making it ideal for high-speed data transmission. We also utilize beryllium copper for the center contact, which offers excellent conductivity and spring properties, ensuring a secure connection that resists loosening over time. This level of engineering excellence is backed by rigorous testing, including 500+ hours of thermal cycling and vibration testing, simulating real-world conditions. Whether for telecom base stations or military radar systems, our connectors deliver unwavering performance.

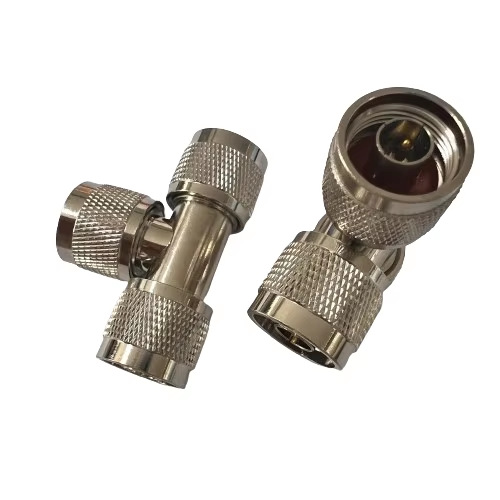

Comprehensive Installation Support and Training

Comprehensive Installation Support and Training

We understand that installing N connector on coax can be challenging, so we offer comprehensive support to ensure success. Our team provides detailed step-by-step guides, video tutorials, and on-site training sessions for bulk orders. We also supply installation kits with precision stripping tools, torque wrenches, and preparation templates. In a recent project, we trained a field team of 50 technicians, reducing installation errors by 40%. Our support extends beyond the sale; we offer 24/7 technical assistance via phone, email, and live chat. With our global presence, we can provide localized support in 10 languages. We also offer a dedicated engineer for large-scale projects to oversee installation quality. This commitment ensures that you get the most out of your N connectors, reducing downtime and maintenance costs.
