The N-C-J1.5 RF connector is a high-precision, highly adaptable standard 50Ω RF connecting device with a threaded locking connection structure, specially designed for low-loss and highly reliable transmission of RF signals. Selected high-quality raw materials are adopted for the product, combined with refined processing technology and excellent environmental adaptability. It can meet the RF signal connection requirements in various fields such as communication base stations, industrial measurement and control, and test and measurement. Whether for the R&D of new equipment, engineering on-site deployment or the transformation of in-service equipment, it can provide a stable and efficient signal connection solution for RF systems, making it an excellent choice for the RF signal transmission link.
Core Materials
🟠 Contact parts: High-conductivity brass (gold-plated), enhancing electrical conductivity, oxidation resistance and corrosion resistance.
🟠 Insulators: Polytetrafluoroethylene (PTFE), high temperature resistant and low dielectric loss, suitable for stable transmission of high-frequency signals.
🟠 Housing/structural parts: High-quality brass (HPB59-1), nickel-plated, improving structural strength as well as wear and scratch resistance.
🟠 Sealing parts: Silicone rubber, enhancing sealing and protection performance, suitable for complex environments such as high dust and high humidity.
| Item | Specification |
|---|---|
| Characteristic impedance | 50Ω (standard RF impedance) |
| Frequency range | DC~6GHz |
| Insulation resistance | ≥5000MΩ |
| Dielectric withstanding voltage | ≥1500V (AC RMS) |
| Contact resistance | Outer conductor ＜0.2mΩ, inner conductor ＜1mΩ |
| Mechanical Performance | / |
| Connection method | Threaded locking connection, firm in connection and resistant to vibration and loosening |
| Mechanical life | ≥500 mating cycles |
| Axial retention force | ≥26.7N |
| Environmental Performance | / |
| Operating temperature | -40℃~+125℃, easily adaptable to extreme high and low temperatures and environments with frequent temperature changes |
| Compliance and Minimum Order Quantity | / |
| Compliance | Conforms to the RoHS 2.0 international environmental protection standard |
| Minimum Order Quantity (MOQ) | ≥100PCS |
🟠 High-frequency and low-loss transmission: The sophisticated structural design combined with high-purity gold-plated contact parts effectively reduces signal transmission loss and contact resistance, with an excellent electromagnetic shielding effect. It ensures high-fidelity transmission of RF signals within 6GHz, suitable for high-frequency and high-precision RF application scenarios.
🟠 Ultra-durable and highly adaptable: The housing and structural parts adopt the brass nickel-plating process, and the contact parts are gold-plated, featuring outstanding corrosion, wear and oxidation resistance. It can withstand high-frequency plugging and unplugging as well as harsh industrial working conditions, greatly extending the service life of the product and reducing the later maintenance and replacement costs.
🟠 Firm locking and vibration resistance: The threaded locking connection structure ensures tight fit and firm locking after connection, with excellent vibration and loosening resistance, suitable for use scenarios with frequent vibrations such as outdoor base stations, industrial equipment and mobile measurement and control terminals.
🟠 High universality and easy replacement: The 50Ω standard RF impedance design is adaptable to a variety of mainstream RF cables to meet the connection needs of different devices, with strong universality. It can directly replace old connectors of the same specification without modifying the original structure of the equipment.
🟠 Precision manufacturing and stable performance: Strict tolerance precision control is implemented in the production process, with minimal matching clearance between components and stringent surface treatment process standards. The product features strong structural stability, which can effectively shield external electromagnetic interference, ensuring no performance attenuation and stable and reliable signal transmission during long-term continuous use of the product.
🟠 Communication systems: Suitable for 5G/4G mobile communication base stations, RF transceivers, wireless communication base station equipment, private network communication terminals, etc., realizing efficient and stable transmission of high-frequency RF signals between devices and modules, and ensuring the continuity and reliability of communication links.
🟠 Test and measurement: Served as the RF signal interface of high-precision test instruments such as spectrum analyzers, network analyzers, signal generators and RF testers, meeting the high-frequency and high-precision signal testing needs of laboratories, third-party testing institutions and enterprise R&D centers.
🟠 Industrial electronics: Adapted to industrial automation measurement and control equipment, radio frequency identification (RFID) readers, microwave communication equipment and RF modules of industrial robots, able to withstand complex working conditions such as strong vibration, high and low temperatures, and high dust in industrial sites.
🟠 Radio and television field: Used in high-definition broadcasting and receiving equipment of radio and television, RF signal transmission links of radio and television systems and satellite communication RF terminals, meeting the high requirements of radio and television systems for the stability and anti-interference of high-frequency signal transmission.
🟠 Equipment transformation and upgrading: It can directly replace N-series RF connectors of the same specification in old equipment without redesigning the equipment interface, rapidly improving the high-frequency signal transmission performance of the equipment, reducing the overall transformation and upgrading costs of the equipment and shortening the transformation cycle.
Q: What is the lead time for customized N-C-J1.5 RF connectors?
A: The lead time is usually 1 to 2 weeks, depending on the complexity of customized requirements (such as special surface treatment, non-standard dimensions) and the scale of purchase orders. The delivery date for bulk customization can be coordinated according to the production plan.
Q: What cable specifications does the N-C-J1.5 RF connector support, and is customized adaptation available?
A: The product is adaptable to a variety of mainstream RF cable specifications such as RG316, RG174 and RG179. Meanwhile, it can be customized according to drawings in accordance with customers' actual needs to meet personalized connection requirements.
Q: What are the core advantages of the threaded connection of N-C-J1.5 compared with the bayonet connection?
A: Compared with the bayonet connection, the threaded locking connection has a higher fit degree, and better vibration and loosening resistance after locking, making it suitable for scenarios with frequent vibrations and extremely high requirements for connection stability such as industrial, outdoor and mobile equipment. At the same time, the threaded connection has a larger sealed contact area, and with the matching sealing parts, the protection performance is more excellent, adapting to complex and harsh environments.
Q: Does your company provide technical support and installation guidance for the N-C-J1.5 RF connector?
A: We mainly supply high-performance RF connector products, and at the same time can provide professional technical support, including installation guidance, cable adaptation suggestions, on-site technical consulting, etc., to ensure the correct installation and stable use of the connector.
Ready to choose a reliable connection solution for your RF system? Contact us today to get free technical consulting and exclusive customized quotation for the N-C-J1.5 RF connector. Our professional team of RF technical experts is always available to answer your questions and provide personalized RF connection solutions for you.
E-mail: [email protected]
Tel: 86-18115599525
Precision connection for stable signal transmission — N-C-J1.5 RF connector, escorting your RF system!
Factory Direct SMA-J-RG316-SMA-J RG316 Coaxial Cable Assembly SMA Male to SMA Male

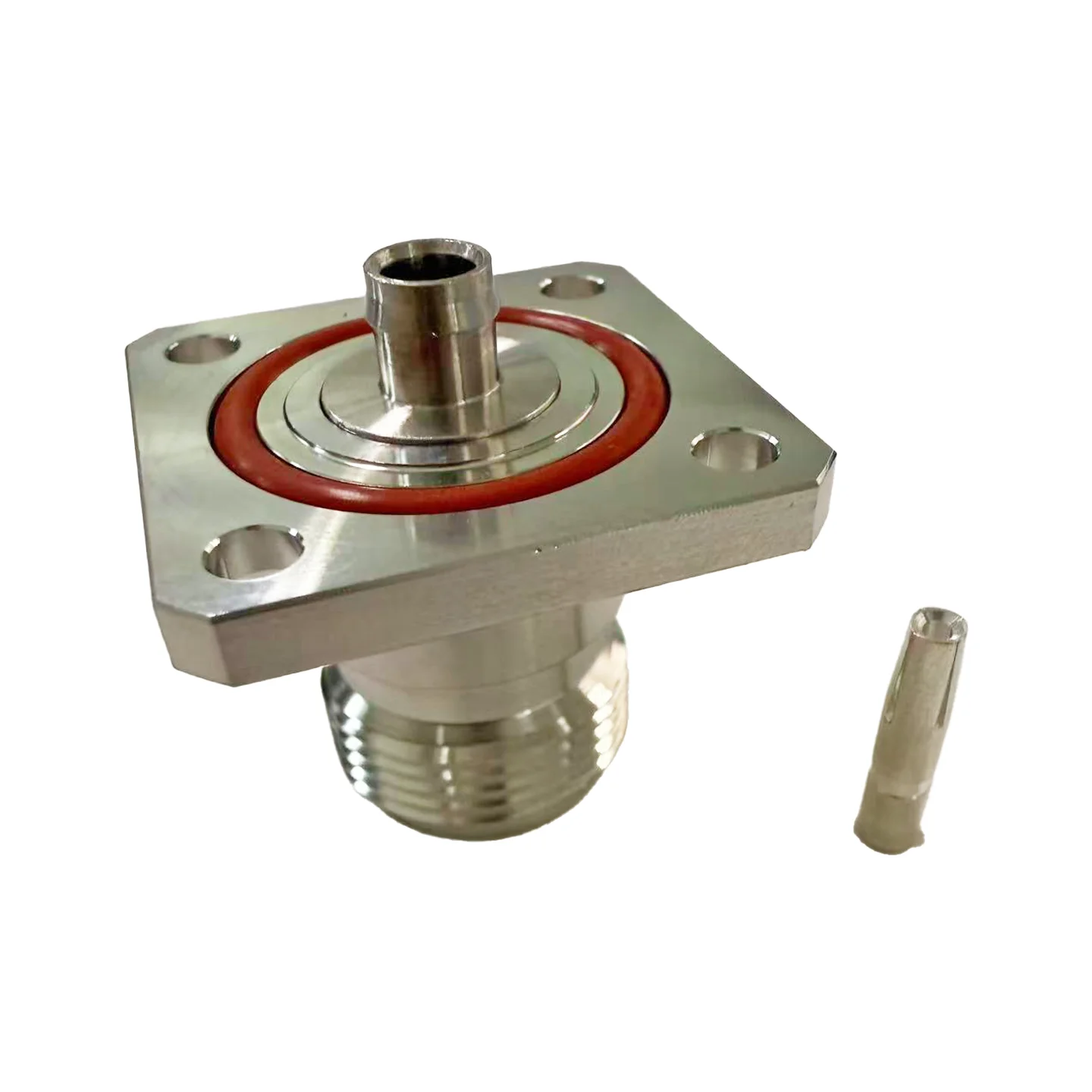

Factory Supply Waterproof N-KFB3 Coaxial Connector Female N Connector for RG402 RG141 Coaxial Cables

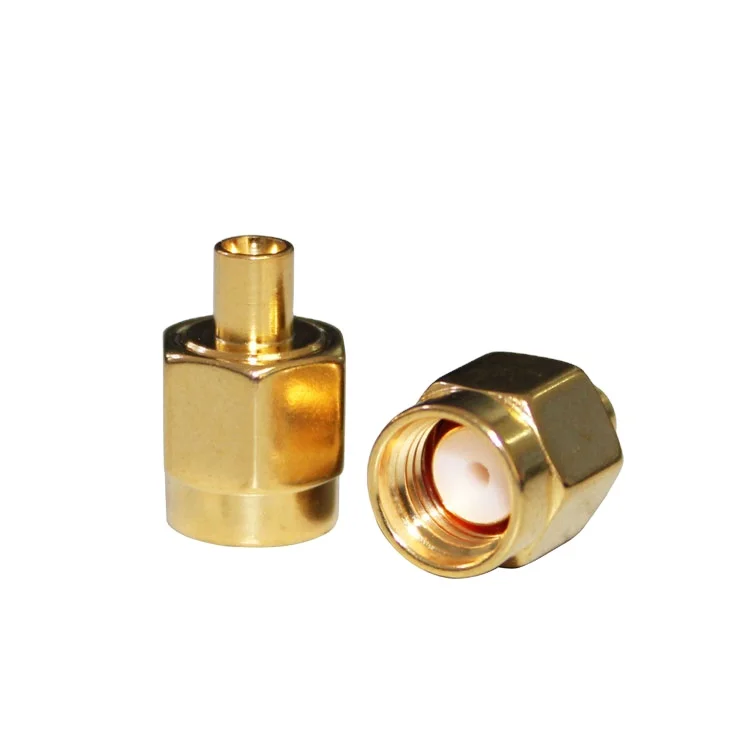

Top Sale SMA-JB2 RF Connector Straight Male SMA Coaxial Connector for RG086 Cable
