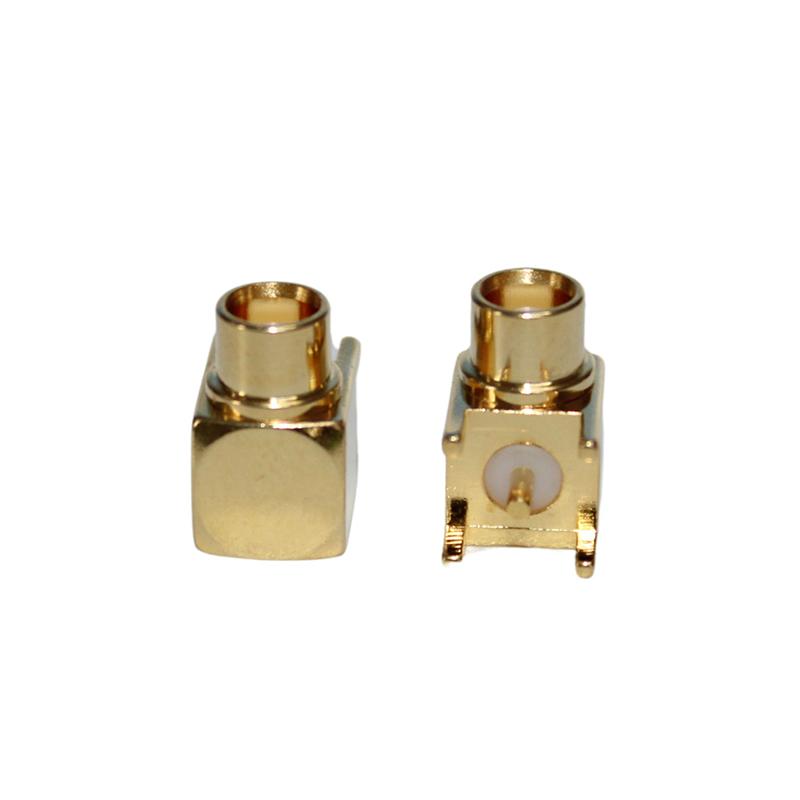

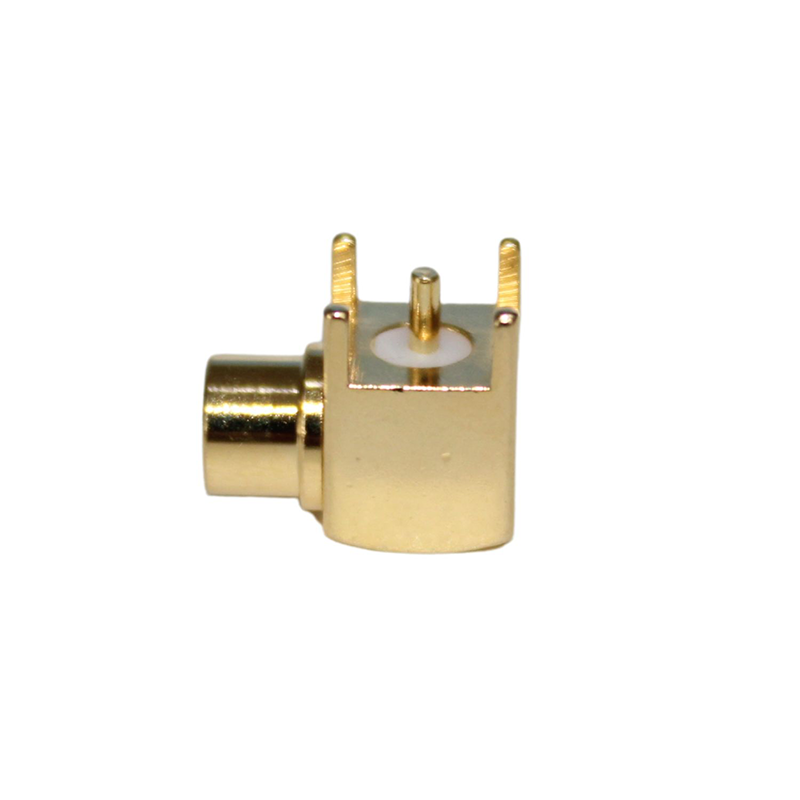

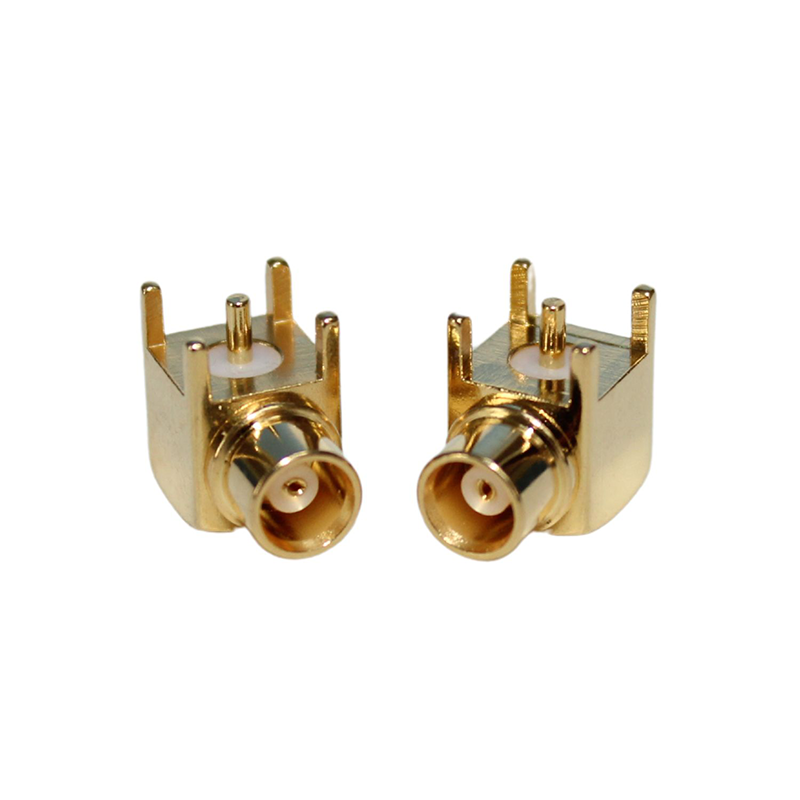

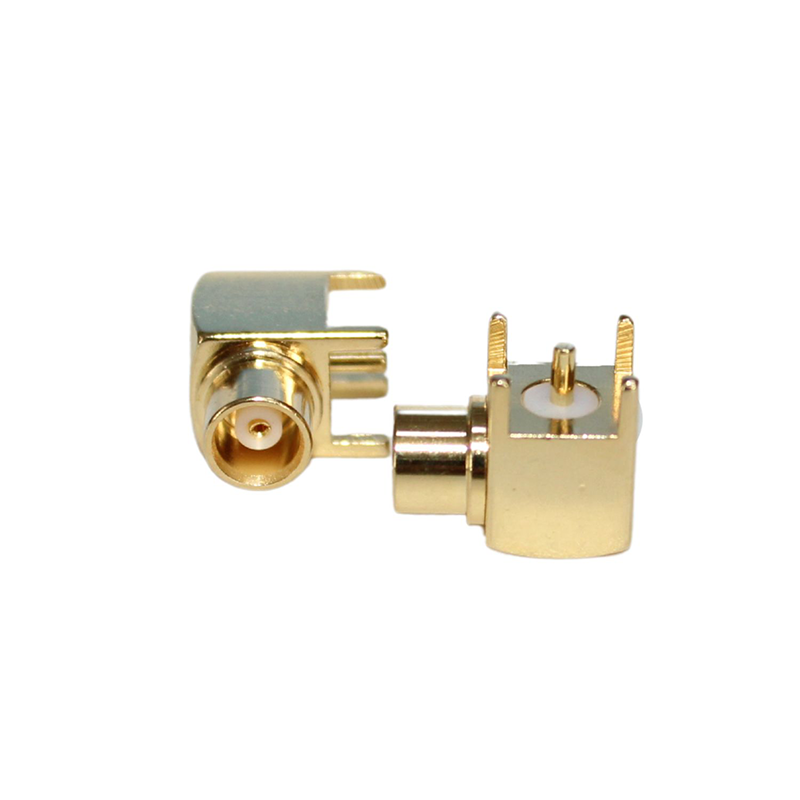

The MCX-KWE RF connector is a miniaturized, highly compatible standard 50Ω RF connecting device, specially engineered for the miniaturized, high-frequency and low-loss transmission of RF signals. Selected high-quality raw materials are adopted for the product, combined with precision micro-processing technology and excellent environmental adaptability. It perfectly meets the miniaturized RF signal connection requirements in various fields such as wireless communication, portable test instruments, RF modules and automotive electronics. Whether for the R&D of micro devices, production of portable terminals or transformation of precision RF systems, it is an ideal choice for miniaturized RF signal connection, providing stable and efficient connection support for all kinds of miniaturized and high-precision RF applications.
Core Materials
🟠 Contact parts: High-purity brass (with gold plating), enhancing high-frequency electrical conductivity and corrosion resistance to meet the performance requirements of micro contact structures.
🟠 Insulating parts: Polytetrafluoroethylene (PTFE), featuring low high-frequency loss and high temperature resistance, perfectly matching the high-frequency signal transmission needs of micro connectors.
🟠 Housing/structural parts: High-quality brass (HPB59-1), with nickel plating, improving the mechanical strength, wear resistance and scratch resistance of micro structures.
🟠 Sealing parts: High-performance silicone rubber, enhancing the waterproof and dustproof protection grade to adapt to the complex service environments of micro devices.
| Item | Specification |
|---|---|
| Characteristic impedance | 50Ω (standard RF impedance) |
| Frequency range | DC~6GHz |
| Insulation resistance | ≥1000MΩ |
| Dielectric withstanding voltage | ≥1000V (AC RMS) |
| Contact resistance | Outer conductor ＜2.5mΩ, inner conductor ＜5mΩ |
| Mechanical life | ≥500 mating cycles |
| Axial retention force | ≥10N |
| Operating temperature | -55℃~+165℃, adaptable to the temperature variation requirements of portable, automotive and other scenarios |
| Compliance | Conforms to the RoHS 2.0 international environmental protection standard, meeting market access requirements |
| Minimum order quantity | ≥100PCS |
🟠 Miniaturization & High Frequency: Adopting a micro structural design, its volume is much smaller than traditional BNC connectors, adapting to the miniaturization development trend of equipment. Meanwhile, it supports the transmission of high-frequency signals from DC to 6GHz, and its low-loss characteristic ensures the high-fidelity transmission of high-frequency signals, meeting the needs of high-precision scenarios such as portable testing and micro RF modules.
🟠 Efficient & Convenient Mating: Boasting a push-pull quick-connect structure, it requires no rotation or snap operation. Instant mating, unplugging and locking can be completed by hand with a firm and non-loosening connection, which greatly improves the assembly, commissioning and maintenance efficiency of micro devices, and is suitable for mass production and on-site quick operation scenarios.
🟠 Wear-Resistant, Corrosion-Resistant & Durable: The contact parts adopt the high-purity brass gold-plating process, and the housing and structural parts are nickel-plated brass, with excellent corrosion, wear and oxidation resistance. It can withstand thousands of mating cycles and complex working conditions, prolonging the overall service life of micro devices and reducing later replacement costs.
🟠 Wide Temperature Adaptability: It can work stably in a wide temperature range from -55℃ to +165℃, adapting to various complex service environments such as automotive electronics, outdoor portable equipment and industrial micro measurement and control terminals.
🟠 Stable Precision Craftsmanship: Strict tolerance control standards are formulated for the micro structure, resulting in minimal fitting clearance between components. The precision shielding structure effectively isolates external electromagnetic interference, ensuring that the product's performance does not attenuate during long-term high-frequency use and the signal transmission is stable and reliable.
🟠 Wireless Communication Field: Suitable for Bluetooth headsets, wireless network cards, micro RF modules, handheld walkie-talkies, private network micro terminals, etc., realizing the efficient transmission of RF signals for miniaturized wireless devices and ensuring the stability and fluency of communication links.
🟠 Test and Measurement Field: Serving as the RF interface of portable test instruments such as portable oscilloscopes, handheld signal generators, micro spectrum analyzers and on-site testing meters, it meets the high-precision signal transmission requirements of off-laboratory on-site detection and mobile testing.
🟠 Automotive Electronics Field: Adapting to car navigation, automotive radar, vehicle-mounted wireless communication equipment and vehicle-mounted audio-visual RF modules, it can withstand vibration and temperature changes during vehicle driving, ensuring the stable transmission of vehicle-mounted RF signals.
🟠 Consumer Electronics Field: Applied to consumer electronic products such as smart wearable devices, portable audio-visual equipment and micro wireless terminals, meeting the RF connection requirements of miniaturized and thin products.
🟠 Industrial Electronics Field: Adapting to industrial automation micro measurement and control terminals, radio frequency identification (RFID) micro readers and industrial microwave micro modules, it can withstand slight vibration, high and low temperatures and other working conditions in industrial sites, ensuring the stability of industrial RF signals.
🟠 Equipment Renovation and Upgrading: It can directly replace the same-specification MCX RF connectors in old miniaturized equipment without modifying the original micro structure of the equipment, quickly improving the high-frequency signal transmission performance of the equipment and reducing the overall upgrade and transformation costs of micro devices.
Q: What is the lead time for custom MCX-KWE RF connectors?
A: The lead time is usually 1 to 2 weeks, depending on the complexity of custom requirements (such as special gold plating thickness, non-standard micro structure, custom cable adaptation) and the scale of the purchase order. The delivery date for bulk customization can be coordinated according to the production plan.
Q: Can the gold plating thickness of the gold-plated contact parts of the MCX-KWE RF connector be customized?
A: Yes. The industry-standard gold plating thickness is adopted for regular products to ensure electrical conductivity and wear resistance. Meanwhile, the gold plating thickness can be customized according to the customer's service environment (such as high-corrosion and high-frequency scenarios) to further improve the product's corrosion resistance and high-frequency transmission performance.
Q: Does your company provide technical support and installation guidance for the MCX-KWE RF connector?
A: We mainly supply high-performance RF connector products, and at the same time can provide professional technical support including installation guidance, cable adaptation suggestions, on-site technical consultation, etc., to ensure the correct installation and stable use of the connectors.
