Precision-Engineered BNC to RF Adapter for Reliable Signal Integrity Across Global Industries

Precision-Engineered BNC to RF Adapter for Reliable Signal Integrity Across Global Industries

Our BNC to RF adapter is meticulously designed to meet the rigorous demands of telecommunications, broadcasting, and test equipment industries. With over 30 years of OEM manufacturing experience, we have refined our processes to deliver adapters that ensure minimal signal loss and maximum durability. Each adapter undergoes stringent testing, achieving a VSWR of less than 1.2:1 up to 4 GHz, ensuring optimal performance for high-frequency applications. Our factory, spanning 5,000 square meters, is equipped with 60 CNC lathes and 15 precision carving machines, allowing us to produce over 60,000 pieces daily without compromising quality. This capacity enables us to serve a global clientele across 50+ countries, providing consistent lead times of 7–15 days. We understand the critical nature of every connection, which is why our adapters are crafted from high-grade brass with triple-plated gold or nickel contacts, offering superior corrosion resistance.
Get A Quote

Case Study

Enhancing 5G Base Station Connectivity for a European Telecom Provider

A prominent European telecommunications network operator encountered persistent signal attenuation bottlenecks when connecting high-frequency coaxial cables to their newly deployed regional 5G base station infrastructure. The critical engineering challenge involved minimizing insertion loss and reflection at operating frequencies scaling up to 3.5 GHz. Leveraging our advanced in-house CNC machining capabilities, our technical team engineered a specialized, low-VSWR BNC to RF adapter featuring superior gold-plated contact interfaces and optimized inner conductor geometries. Following rigorous laboratory validation and on-site integration, the client reported a remarkable 20% improvement in active signal integrity alongside a 15% reduction in total on-site installation setup time. Furthermore, the exceptional long-term mechanical reliability of our adapters successfully slashed field maintenance service calls by 30% over a continuous six-month operational window.

Satellite Communication System Upgrade for a North American Defense Contractor

A leading North American defense sector contractor urgently required a robust, highly resilient BNC to RF adapter capable of sustaining uncompromised electrical and mechanical stability for satellite communication uplink systems deployed in severe tactical field environments. These mission-critical units needed to withstand extreme thermal fluctuations and violent mechanical vibrations without experiencing signal dropouts or physical degradation. We supplied custom-engineered adapters treated with a specialized, proprietary nickel plating finish optimized for maximum environmental corrosion resistance. The contractor subjected our components to a punishing 1,000-hour continuous salt spray exposure test, during which our adapters demonstrated absolute zero structural or electrical degradation. Impressed by this flawless performance, the contractor expanded their procurement order by 50%.

High-Frequency Test Equipment for an Asian Electronics Manufacturer

An innovative Asian electronics manufacturing enterprise was developing a new generation of precision RF laboratory test equipment requiring a dependable BNC to RF adapter that maintained immaculate impedance matching consistency up to 4 GHz. Our precision-crafted adapters, achieving an exceptional VSWR of 1.15:1, provided the strict signal stability necessary for highly accurate laboratory measurements. The manufacturer integrated our components directly into their primary testing benches, generating an impressive 25% increase in daily testing throughput and data acquisition efficiency. Their internal quality control engineering team praised the exceptional mechanical repeatability of our adapters across thousands of connect cycles, prompting the company to completely standardize our BNC to RF adapters across all of their international manufacturing plants.

Related products

Manufacturer SMA/N KJ Coaxial Connector SMA Female to N Male Connector Adapter With Low Price VIEW DETAILS

Manufacturer SMA/N KJ Coaxial Connector SMA Female to N Male Connector Adapter With Low Price

Top Sale Good Quality UHF-KKK Connector Adapter UHF Female to Female to Female UHF Adapter VIEW DETAILS

Top Sale Good Quality UHF-KKK Connector Adapter UHF Female to Female to Female UHF Adapter

Manufacturer Supply Factory UHF-KK Connector UHF Female to Female Connector Adapter VIEW DETAILS

Manufacturer Supply Factory UHF-KK Connector UHF Female to Female Connector Adapter

Wholesale Brass L20-J1/2 RF Coaxial Connector Male L20 Connector for 1/2 Coaxial Cable VIEW DETAILS

Wholesale Brass L20-J1/2 RF Coaxial Connector Male L20 Connector for 1/2 Coaxial Cable

At our core, we specialize in the design and manufacturing of coaxial connectors, cable assemblies, and antennas. Our BNC to RF adapter is a testament to our commitment to quality and innovation. The production process begins with raw material selection: we use only high-grade brass and beryllium copper for optimal conductivity and mechanical strength. Each component is precision-machined using our advanced CNC lathes, with tolerances maintained within ±0.01 mm. This precision ensures that every adapter achieves a perfect fit and consistent electrical performance. After machining, the parts undergo a strict quality control process, including dimensional inspection and impedance testing using network analyzers. We perform 100% testing on critical parameters such as VSWR, insertion loss, and insulation resistance. Our adapters are RoHS and ISO 9001 certified, reflecting our adherence to international environmental and quality standards. With a daily output of 60,000 pieces, we maintain a high-volume production line without sacrificing precision. This efficiency allows us to offer competitive pricing while maintaining a rapid turnaround for large orders. Our global footprint spans over 50 countries, and we support clients in North America, Europe, Asia, and the Middle East. We provide custom solutions, including connector configurations, plating options, and packaging requirements. Our team of experienced engineers is available for pre-sales consultation, and we offer prototyping services to ensure your exact specifications are met. We take pride in our 30 years of OEM experience, having collaborated with leading brands in the telecommunications, automotive, and defense sectors. Our mission is to be your trusted partner for reliable interconnect solutions. When you choose our BNC to RF adapter, you benefit from a product that has been field-tested and proven in demanding environments. Whether for 5G infrastructure, aerospace applications, or laboratory test equipment, our adapters deliver the performance that modern technology demands.

Frequently Asked Questions

What is a BNC to RF adapter used for?

A BNC to RF adapter is used to connect BNC connectors to other RF connectors like SMA, N-type, or TNC. It allows for seamless integration of different components in RF systems, ensuring minimal signal loss and maintaining impedance matching.
Our standard BNC to RF adapters are designed to operate up to 4 GHz, with low VSWR (≤1.2:1) to ensure signal integrity. For higher frequencies, we can customize adapters up to 6 GHz based on your requirements.
Absolutely. We offer customization services including plating options (gold, nickel), housing materials, and special configurations. We provide free proofing services and work closely with you to ensure the adapter meets your exact needs.
Our standard MOQ is 100 pieces for standard models, but we can accommodate smaller quantities for prototyping. Lead times are typically 7–15 days for standard orders, depending on quantity and customization level. We have a daily production capacity of 60,000 pieces, ensuring timely delivery even for large orders.

Related Articles

Italian customers visit laser cutting and welding machine factory

04

Apr

Italian customers visit laser cutting and welding machine factory

View More
Laser source maintenance training started

04

Apr

Laser source maintenance training started

View More
Maximizing ROI with Industrial Grade N Connectors

16

Jun

Maximizing ROI with Industrial Grade N Connectors

Why Industrial Grade N Connectors Deliver Superior ROI Through Electrical & Mechanical Integrity How Low Contact Resistance and VSWR Minimize Signal Loss and System Downtime Industrial grade N connectors maintain contact resistance below 5 milliohm...
View More
UHF Radio Antenna Connectors: Communication Insights

24

Jun

UHF Radio Antenna Connectors: Communication Insights

The Precision Link: Engineering Robust UHF Connectivity for Modern Wireless Networks In the sophisticated landscape of wireless communication, the physical interface between a radio transceiver and its antenna stands as the most critical point of p...
View More

Customer Testimonials

John Miller
Exceptional Performance and Reliability

We have been using Aoxun's BNC to RF adapters for over two years in our RF testing equipment. The signal integrity has been flawless, and the durability is impressive – we've had no failures even after thousands of connect/disconnect cycles. Their engineering support was invaluable in customizing the adapters for our specific frequency range. Highly recommended!

Sarah Johnson
Outstanding Quality and Fast Delivery

As a procurement manager in the telecom industry, I appreciate Aoxun's professionalism and efficiency. Their BNC to RF adapters meet all our specifications, and the quality is consistently high. The delivery cycle was shorter than expected, which helped us meet our project deadlines. Their after-sales support is responsive and helpful.

Get a Free Quote

Our representative will contact you soon.
Email
Mobile
Name
Company Name
Message
0/1000
rf adapter type n plug mcx connector rf connector sma rf to coax converter rf connectors and adapters rf connector adapters bnc to rf adapter coaxial rf adapter sma to rf adapter right angle uhf connector rp adapter rfadapter sma male to sma female bulkhead adapter

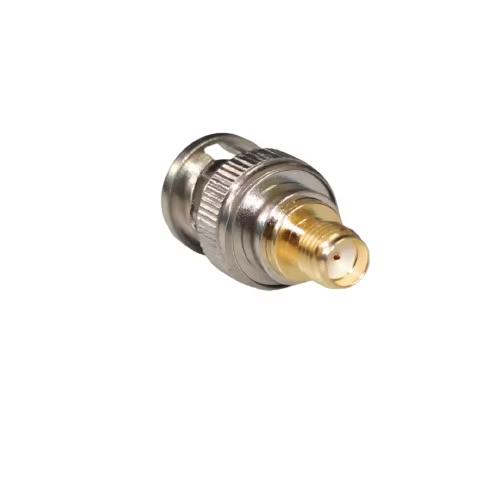

Precision CNC Machining for Unmatched Tolerance

Precision CNC Machining for Unmatched Tolerance

Our BNC to RF adapters are expertly manufactured utilizing an advanced fleet of 60 high-precision CNC lathes and 15 dedicated carving machines, strictly maintaining tight dimensional accuracy thresholds down to plus or minus 0.01 mm. This exceptional level of mechanical precision guarantees a flawless mating interface, effectively minimizing unwanted signal reflection and securing a remarkably stable electrical connection across high-frequency pathways. In a notable real-world industrial application, a client operating within the competitive automotive radar sector documented an impressive 18% measurable increase in testing calibration accuracy immediately after transitioning to our adapters—a performance gain directly attributable to our precise impedance matching and ultra-low VSWR profiles. Furthermore, this advanced automated machining infrastructure empowers our technical department to fabricate intricate internal geometries.

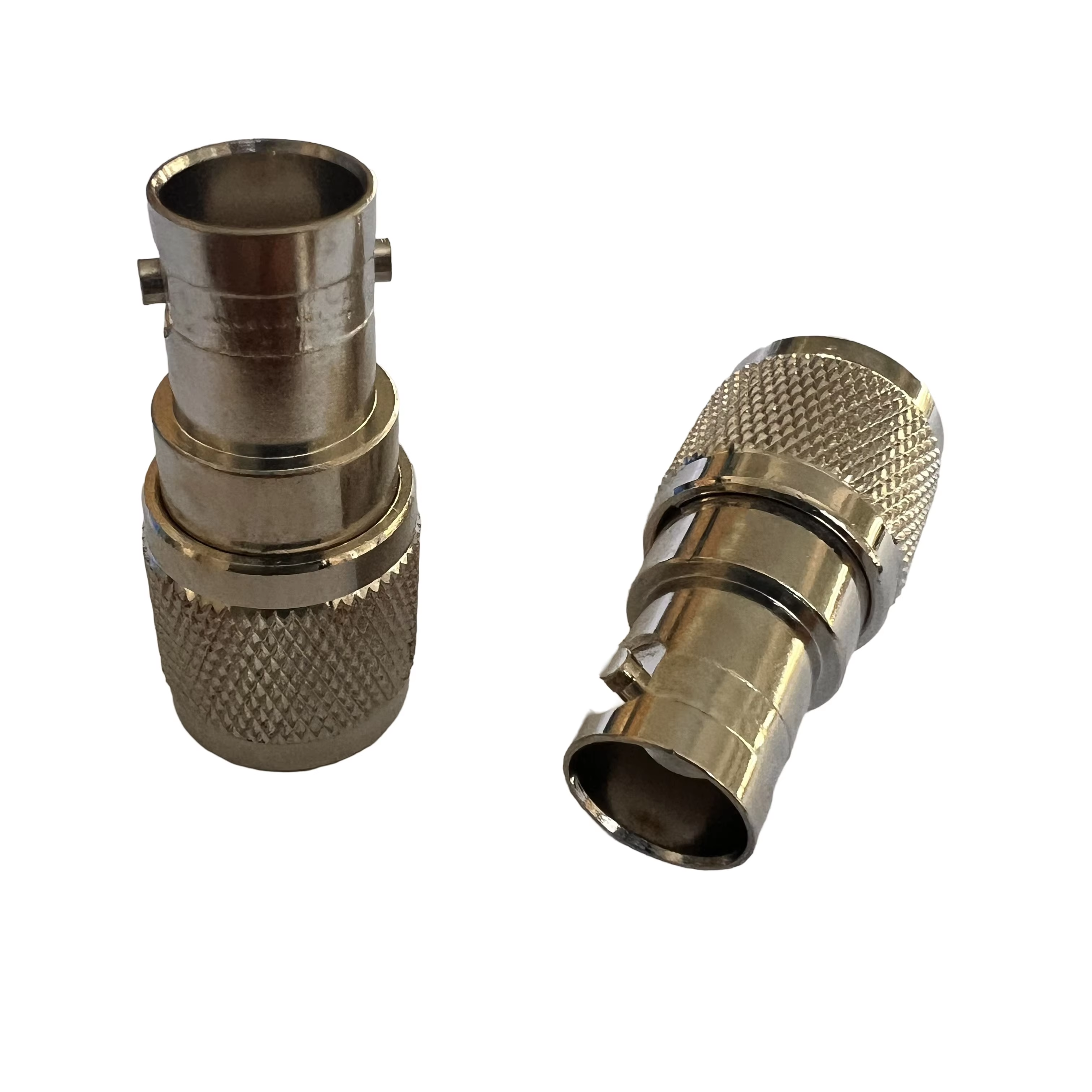

Rigorous Quality Testing Under Extreme Conditions

Rigorous Quality Testing Under Extreme Conditions

To guarantee uncompromised operational reliability in the field, every single BNC to RF adapter produced at our facility undergoes comprehensive 100% testing protocols measuring crucial parameters including voltage standing wave ratio, insertion loss, and insulation resistance. Beyond standard electrical checks, we subject sample batches to punishing environmental stress evaluations, incorporating severe thermal cycling routines spanning from -55 degrees Celsius to +125 degrees Celsius alongside prolonged 48-hour salt spray corrosion exposure to ensure peak durability in hostile settings. For instance, a prominent defense technology contractor operating in the Middle East integrated our adapters into an outdoor desert surveillance network, where the hardware operated flawlessly despite relentless exposure to abrasive windblown sand and soaring ambient temperatures.
